Vessel Introduction

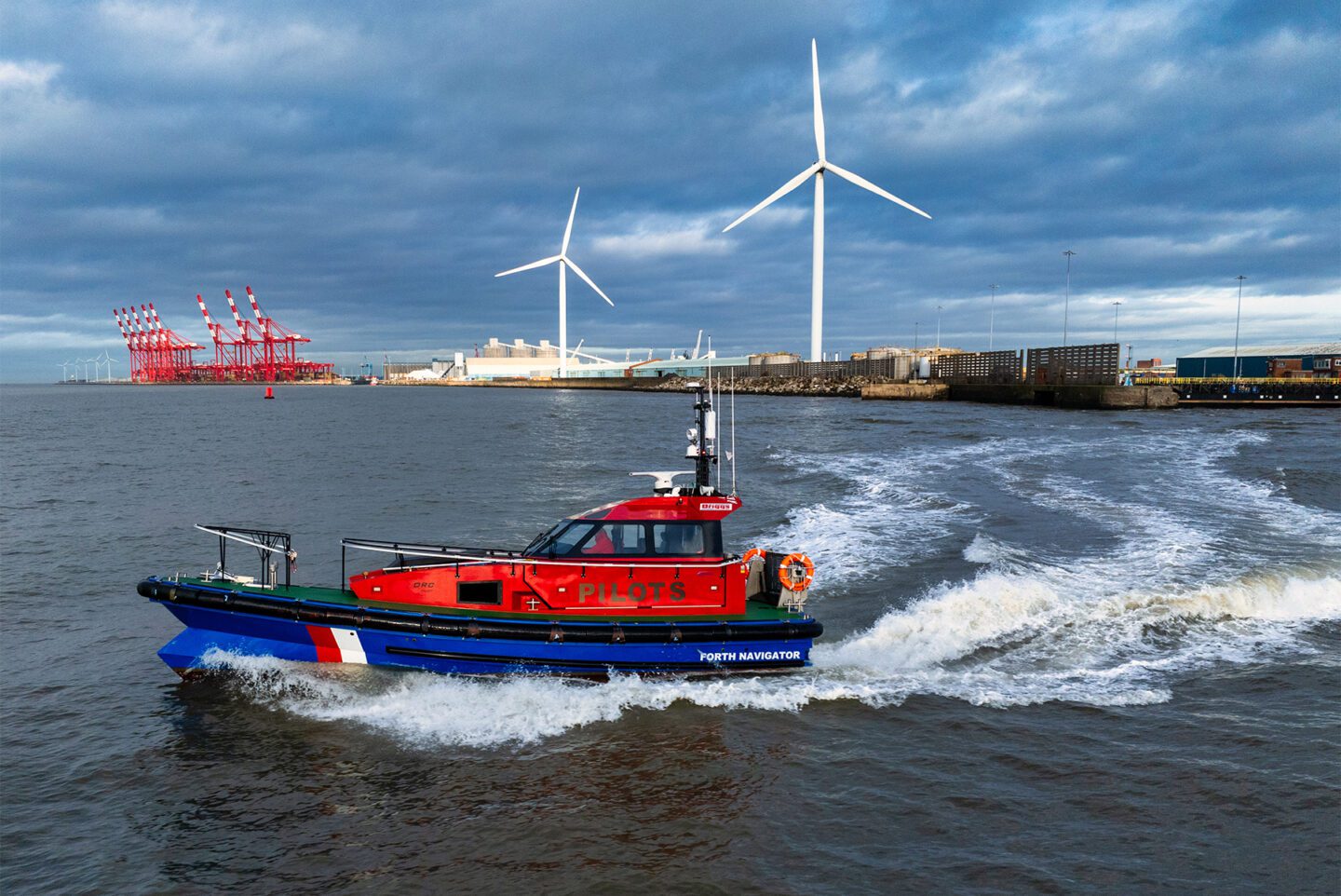

A 12m GRP construction pilot boat capable of carrying 4 pilots. The vessel is road transportable and can be mobilised to anywhere within the UK.
For full technical specifications or to make a charter enquiry, simply contact our Vessel Charter Department or complete the enquiry form below.
General Infomation
| Builder | Goodchild Marine Services Ltd |
|---|---|
| Vessel Type | ORC-121 |
| Water Tight Bulkheads | 4 |
| Certification/ Rules | MCA Category 3 (30 miles from a safe haven) |
| Length O.A | 12.056 m |
| Beam O.A | 4.730 m |
| Draught (98% conditions) | 1.379 m (dependant on loading) |
| Fuel Capacity | 1436 litres (total) |
| Ad Blue Capacity | 143 Litres (total) |
| Maximum Displacement | 14.416 tonnes (Approximate) |
| Service Speed | 21 Knots (approximately) |
| Maximum Speed | 26 Knots (approximately) |
| Crew/Pilots/Passengers | 6 persons total (2 crew, 4 Pilots / additional personnel) |
Main Equipment – Details
| Main Engines | 2 x Volvo Penta D8 450hp @2700 rpm) Tier III compliant |
|---|---|
| Gearboxes | Twin Disc MGX-5126A 2.5:1 reduction Gearbox |
| Propeller | ISO 8845 NAB 27 x 37 – 5 Blade |
| Propulsion | Fixed pitch propeller |
| Total Power | 662Kw |
